Project 1 - Phase 1: Controller Design and Simulation

Published: February 28, 2025

Keywords: PID, Quadrotor Dynamics
Coding language: MATLAB
Detailed code implementation can be found in the Github code repo

Controller Design

Implement the controller in the controller.m file. The input of controller includes time t, current state vector s and desired state vector s_des. The output of controller is force F and moment M.

The Quadrotor dynamics is based on the following equations:

Motor model: $\dot{\omega}_i = k_m(\omega_i^{des} - \omega_i)$
Thrust from individual motor: $F_i = k_F\omega_i^2$
Moment from individual motor: $M_i = k_M\omega_i^2$
Newton Equation:

\[m\ddot{p} = \begin{bmatrix} 0 \\ 0 \\ -mg \end{bmatrix} + R \begin{bmatrix} 0 \\ 0 \\ F_1 + F_2 + F_3 + F_4 \end{bmatrix}\]

Euler Equation:

\[I \cdot \begin{bmatrix} \dot{\omega}_x \\ \dot{\omega}_y \\ \dot{\omega}_z \end{bmatrix} + \begin{bmatrix} \omega_x \\ \omega_y \\ \omega_z \end{bmatrix} \times I \cdot \begin{bmatrix} \omega_x \\ \omega_y \\ \omega_z \end{bmatrix} = \begin{bmatrix} l(F_2 - F_4) \\ l(F_3 - F_1) \\ M_1 - M_2 + M_3 - M_4 \end{bmatrix}\]

For 3D Quadrotor, we do the linearization around the equilibrium hover state with $(\phi_0 \sim 0, \theta_0 \sim 0, u_{1,0} \sim mg)$.

In this project, I implemented the PD-controller for the 3D Quadrotor, with the control equations & controller outputs as follows:

Position Control:
- PID (PD):
  \[\ddot{\mathbf{p}}_{i,c} = \ddot{\mathbf{p}}_{i}^{des} + K_{d,i}(\dot{\mathbf{p}}_{i}^{des} - \dot{\mathbf{p}}_{i}) + K_{p,i}(\mathbf{p}_{i}^{des} - \mathbf{p}_{i})\]
- Model:
  \[u_1 = m(g + \ddot{\mathbf{p}}_{3,c})\] \[\phi_c = \frac{1}{g} (\ddot{\mathbf{p}}_{1,c}\sin\psi - \ddot{\mathbf{p}}_{2,c}\cos\psi)\] \[\theta_c = \frac{1}{g} (\ddot{\mathbf{p}}_{1,c}\cos\psi + \ddot{\mathbf{p}}_{2,c}\sin\psi)\]
Attitude Control
- PID (PD):
  \[\begin{bmatrix} \ddot{\phi}_c \\ \ddot{\theta}_c \\ \ddot{\psi}_c \end{bmatrix} = \begin{bmatrix} K_{p,\phi}(\phi_c - \phi) + K_{d,\phi}(\dot{\phi}_c - \dot{\phi}) \\ K_{p,\theta}(\theta_c - \theta) + K_{d,\theta}(\dot{\theta}_c - \dot{\theta}) \\ K_{p,\psi}(\psi_c - \psi) + K_{d,\psi}(\dot{\psi}_c - \dot{\psi}) \end{bmatrix}\]
- Model:
  \[\mathbf{u}_2 = \mathbf{I} \cdot \begin{bmatrix} \ddot{\phi}_c \\ \ddot{\theta}_c \\ \ddot{\psi}_c \end{bmatrix} + \begin{bmatrix} \omega_x \\ \omega_y \\ \omega_z \end{bmatrix} \times \mathbf{I} \cdot \begin{bmatrix} \omega_x \\ \omega_y \\ \omega_z \end{bmatrix}\]

Trajectory Simulation Figures

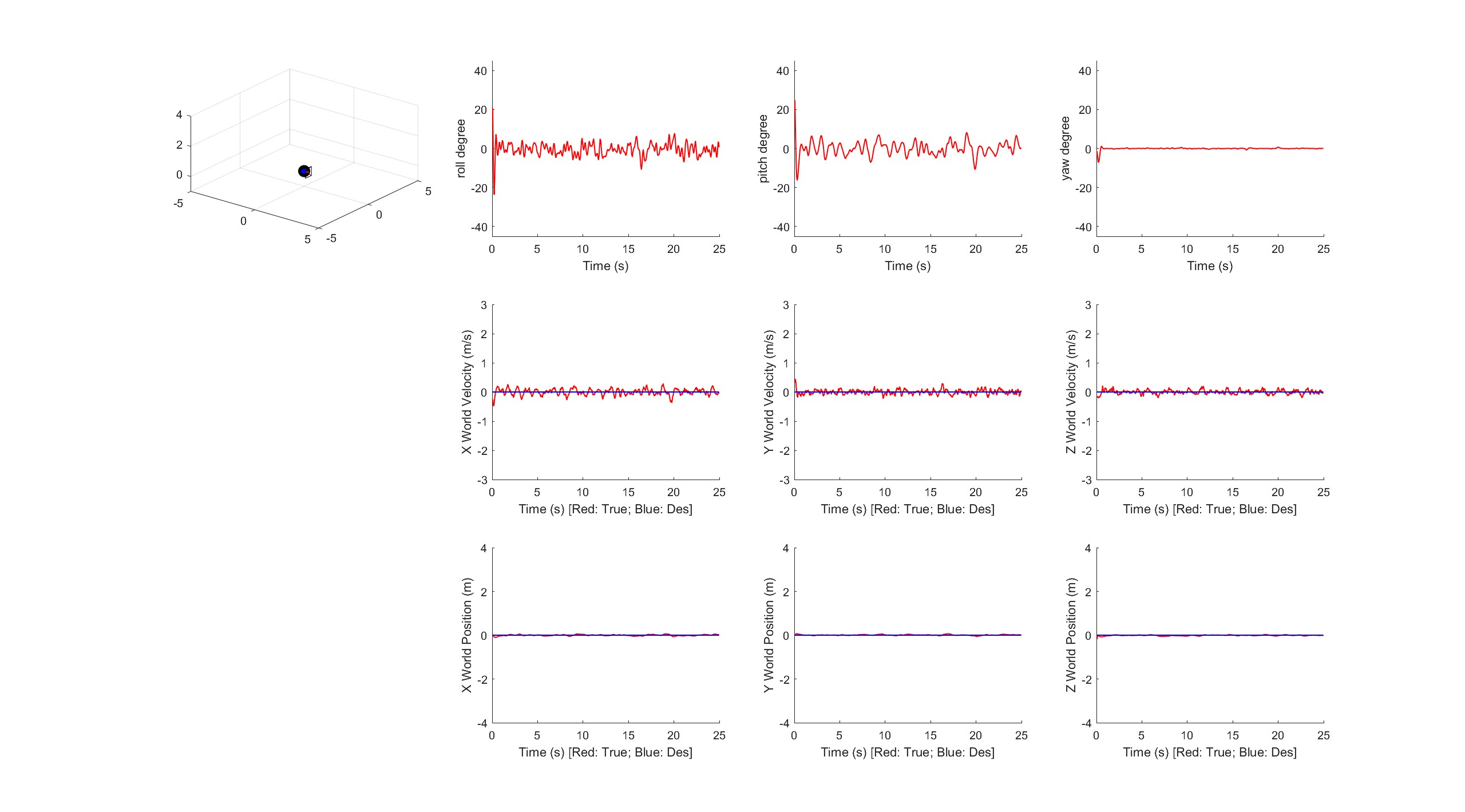

Hover

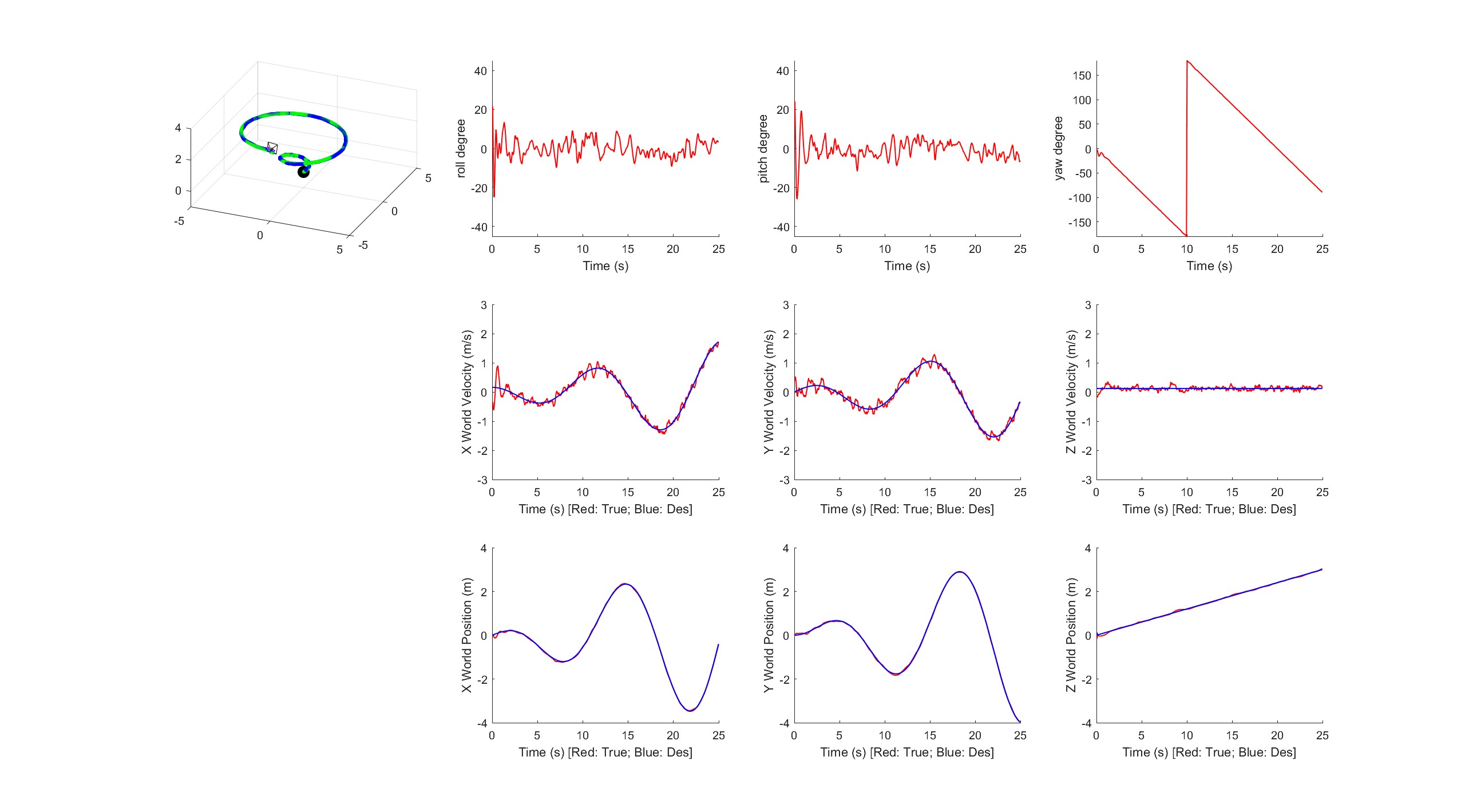

Circle

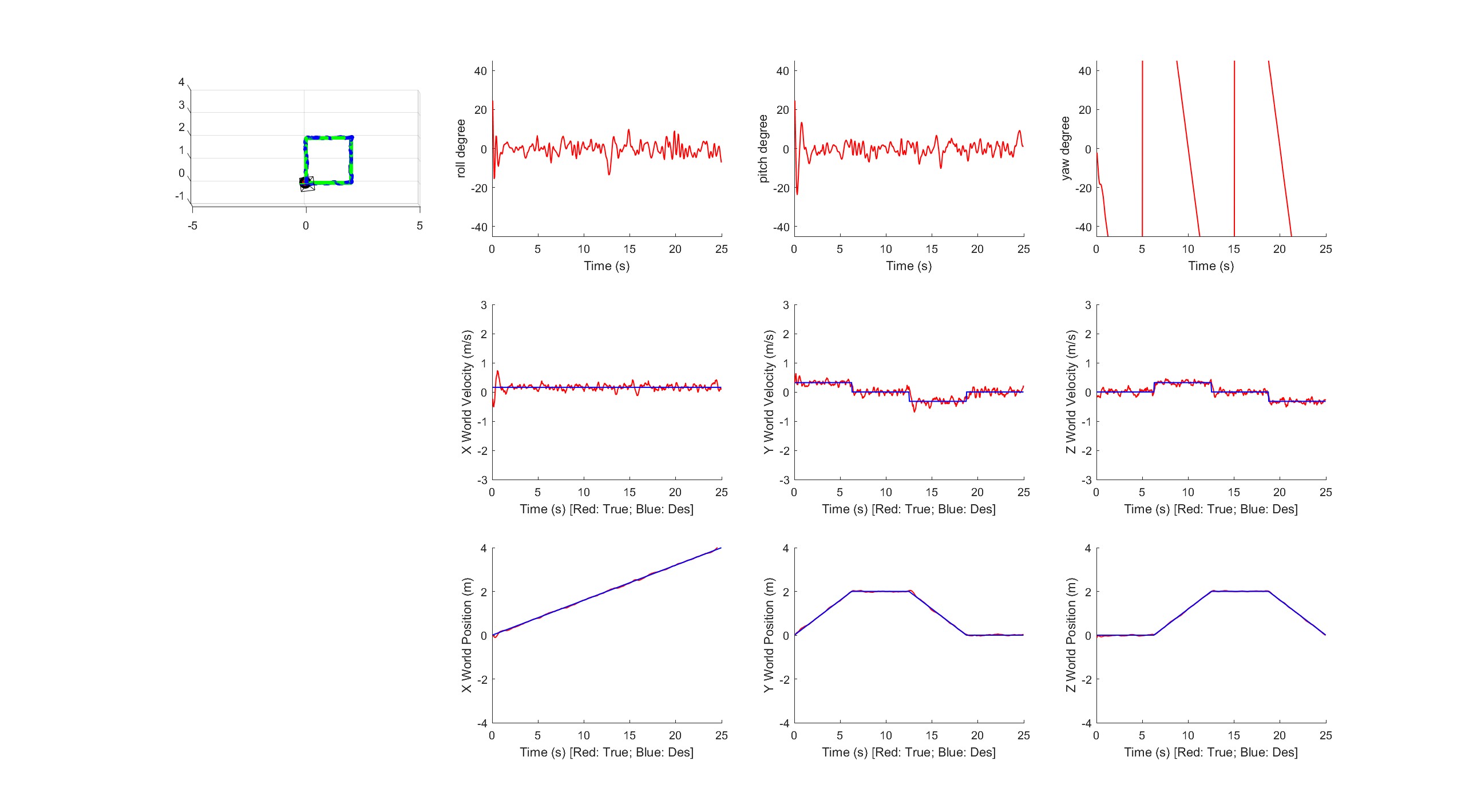

Square

Star

Controller Statistics

PD Controller Parameters

	X_pos	Y_pos	Z_pos	Roll_att	Pitch_att	Yaw_att
Kp	10	10	10	310	120	250
Kd	5	5	5	15	15	20

Trajectory Performance

Trajectory	RMSE Position (m)	RMSE Velocity (m/s)	RMSE Yaw (deg)
Hover	0.021131	0.084754	0.80289
Circle	0.025853	0.099345	0.81037
Square	0.027458	0.10681	0.80584
Star	0.15466	0.48619	10.4732

Result Analysis

All the parameters of the PID-controller are optimized by primarily following Ziegler-Nichols Method and subsequently manually finetuning. Based on the simulation figures and the RMSE values for all trajectories, the PD-controller is well-optimized, though the controller for roll and pitch is not that perfect compared with other dynamic features. As for the customized Star trajectory, there are relatively drastic overshoots, which is totally acceptable considering the short rise time and settling time afterwards. Also, the RMSE values across all features are rather small for the Star trajectory. All above, the controller has been well-optimized.
